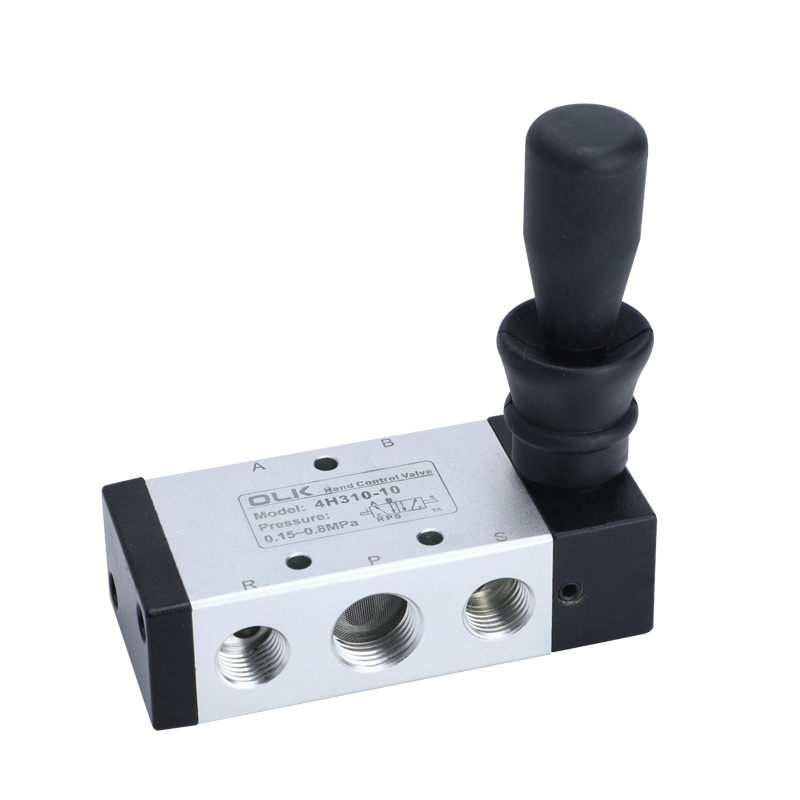

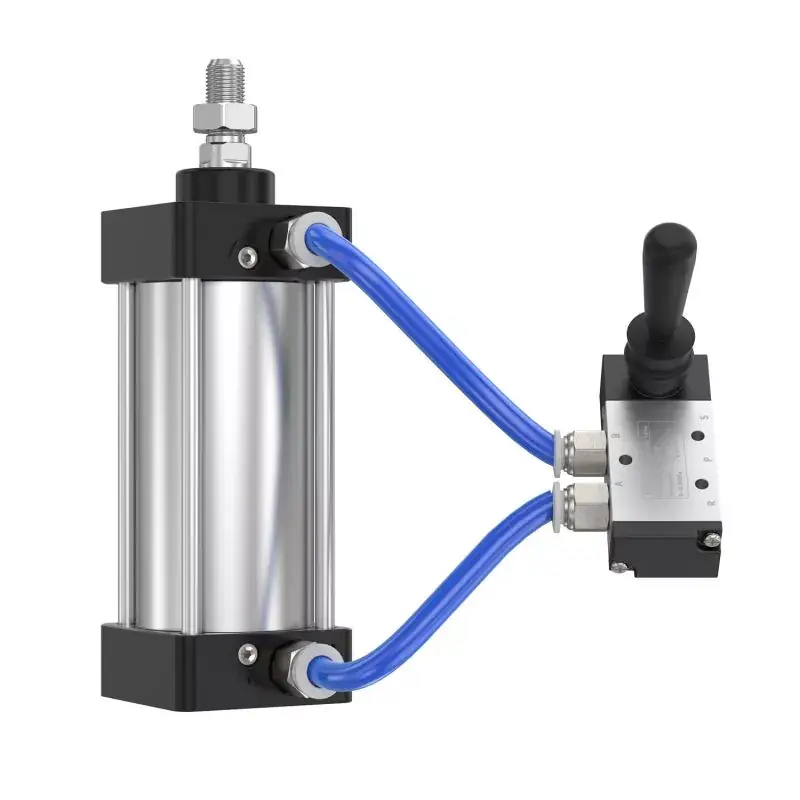

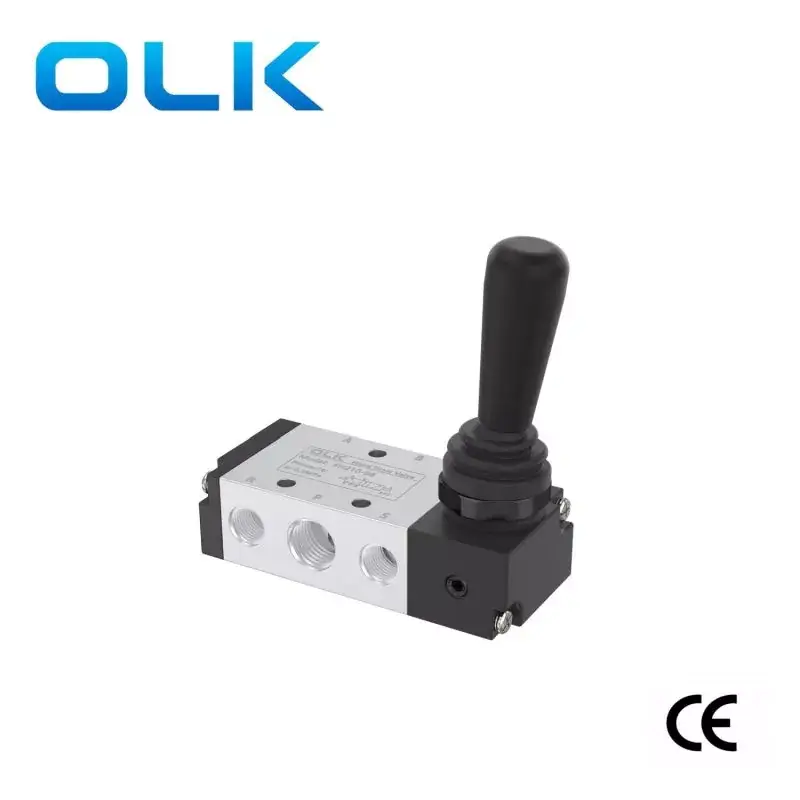

The Ouleikai (OLK) 4H Series Lever Valve 5 Way offer simple and reliable operation, without complex electrical control components, ensuring high reliability and suitability for basic pneumatic control scenarios. Users can adjust the gas flow direction by operating the hand lever valve according to actual needs.
4H series lever valvesApplicable Scenarios: Laboratory applications, such as laboratory pneumatic systems, research equipment, etc.
Notes: If any abnormalities are found during use, such as gas leakage or valve jamming, please stop using immediately and contact OLK company sales personnel for after-sales service.
SYMBOL:
Ordering code
4H
2
30C
08
MODEL:
CODE:
VALVE TYPE:
PORT SIZE:

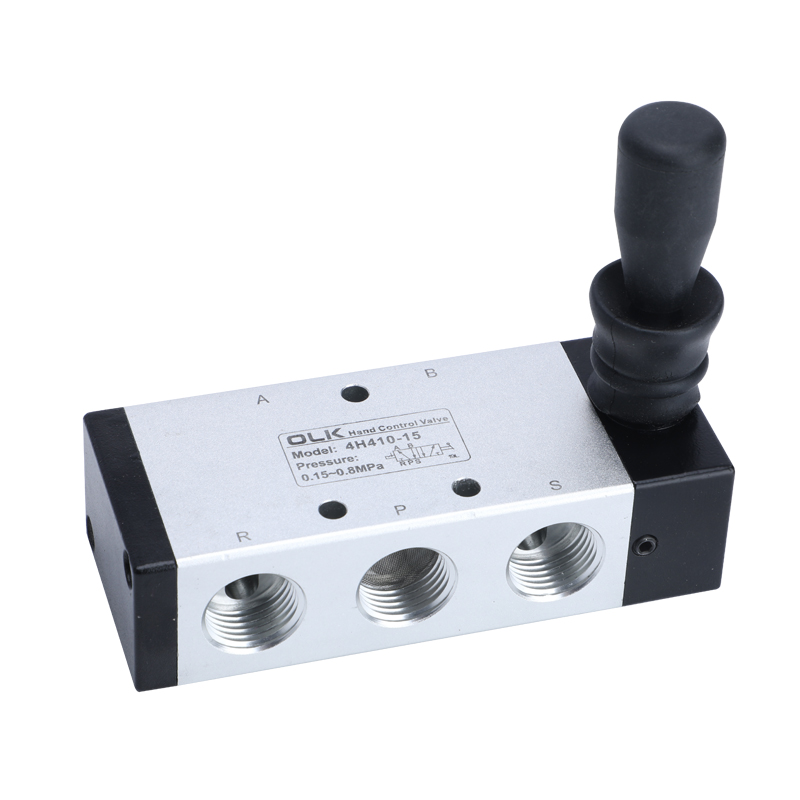

4H:Manual Reset lever valve hand valve
2:200 series
10:5/2 way valve
200 series:06:G1/8

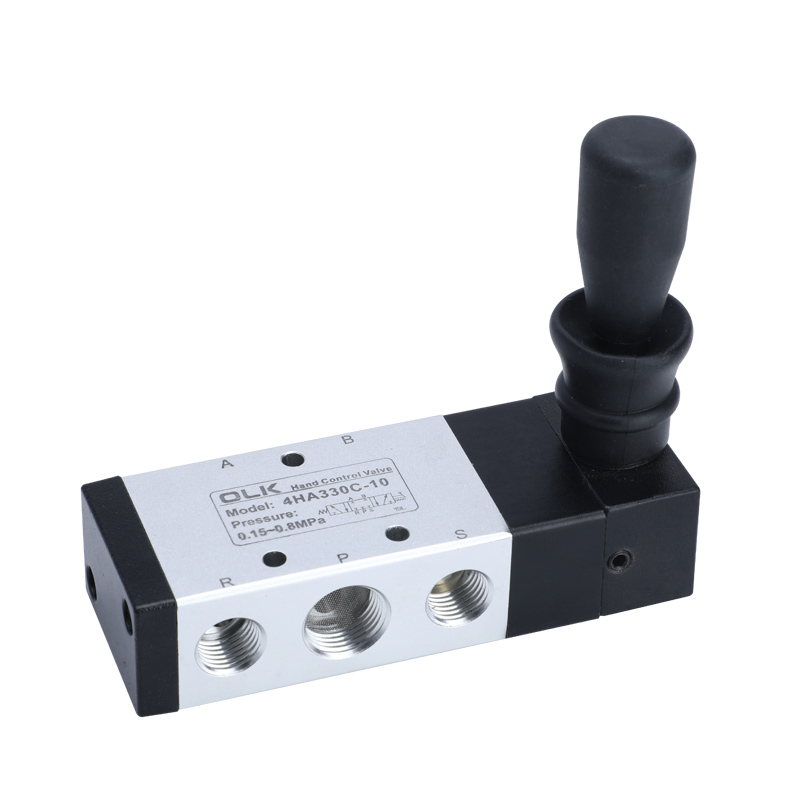

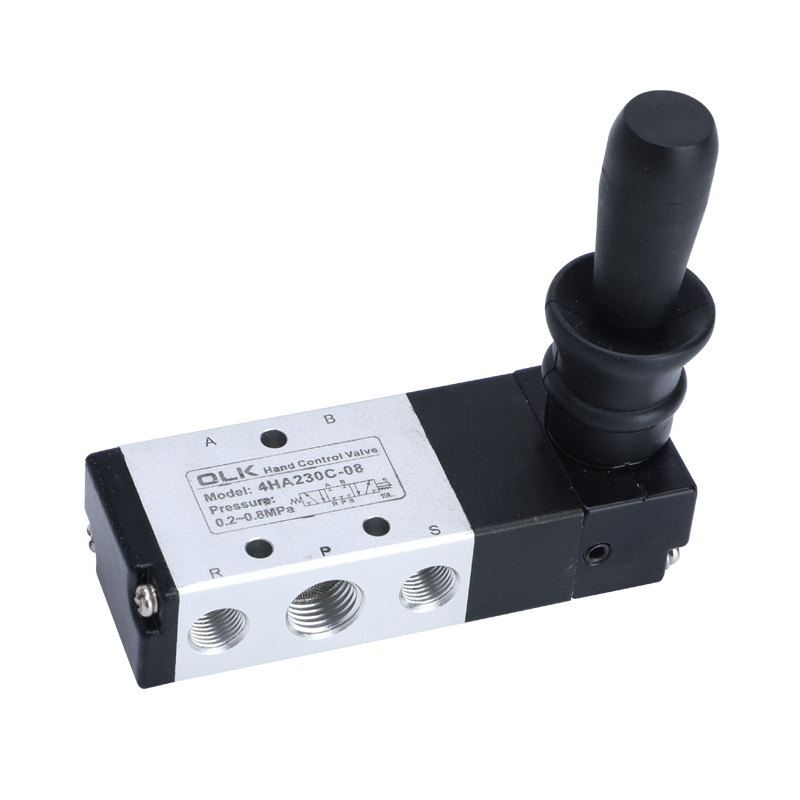

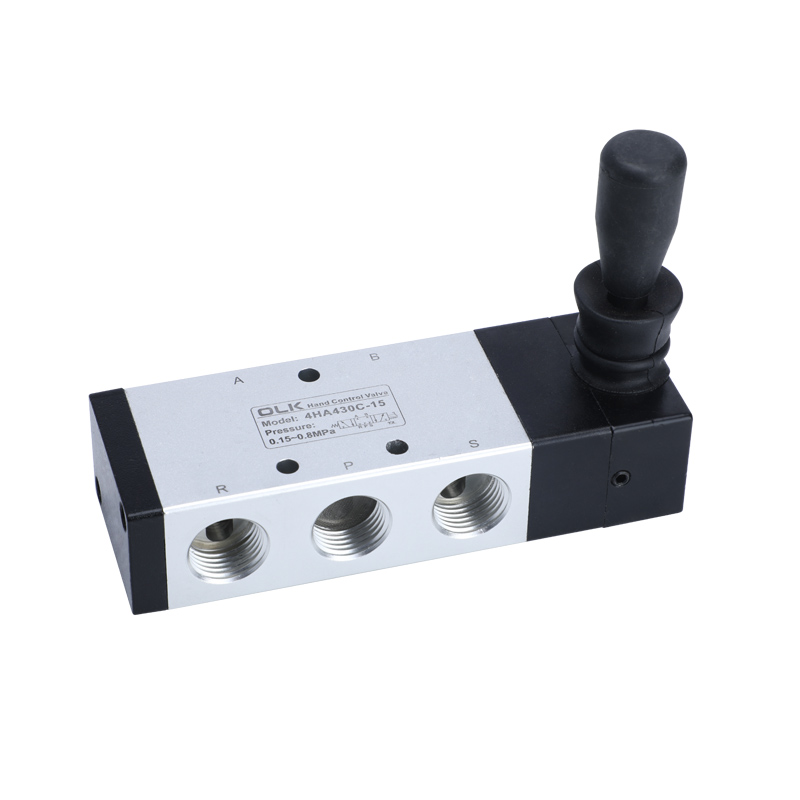

4HA:Spring-Return lever valve hand valve
3:300 series
30C:5/3 way ,3 position closed center
200 series:08:G1/4
30E:5/3 way,3 position exhaust center
300 series：08：G1/8
30P:5/3 way,3 position pressure center
300 series：10：G3/8
1. Manual operation, smooth actuation, precise and reliable positioning;
2. Piston-type structure, excellent sealing, compact size, lightweight, easy installation and disassembly;
3. The inner hole is processed with a special technique, resulting in low friction resistance and long service life;
4. No need for oil lubrication;
5. Panel installation functionality, easy and convenient installation, meeting various customer needs.
1) The five-port three-position manual reset manual valve employs spring steel ball positioning, facilitating switching. Please exercise caution not to apply excessive force during operation, as this may result in incorrect control positions and unintended actions.
2) When mounting with a panel, you can either remove or retain the spacer based on the particular situation.
3) Consult the diagram for different installation approaches.
Special Note: When securing the panel, consider the thickness of the mounting plate and the diameter of the mounting hole.
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Manual direct control |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0∼0.8(0~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-20∼70 |
|
Body material |
aluminum alloy |
|
model |
Port diameter |
number of positions |
Flow cross-sectional area mm² (CV value) |
|
4H210-06 |
Intake=outlet=G1/8 |
2 position 5 way |
14.0(0.78) |
|
4H230C-06 |
Intake=outlet=G1/8 |
Three position five way |
12.0(0.67) |
|
4H230E-06 |
Intake=outlet=G1/8 |
Three position five way |
12.0(0.67) |
|
4H230P-06 |
Intake=outlet=G1/8 |
Three position five way |
12.0(0.67) |
|

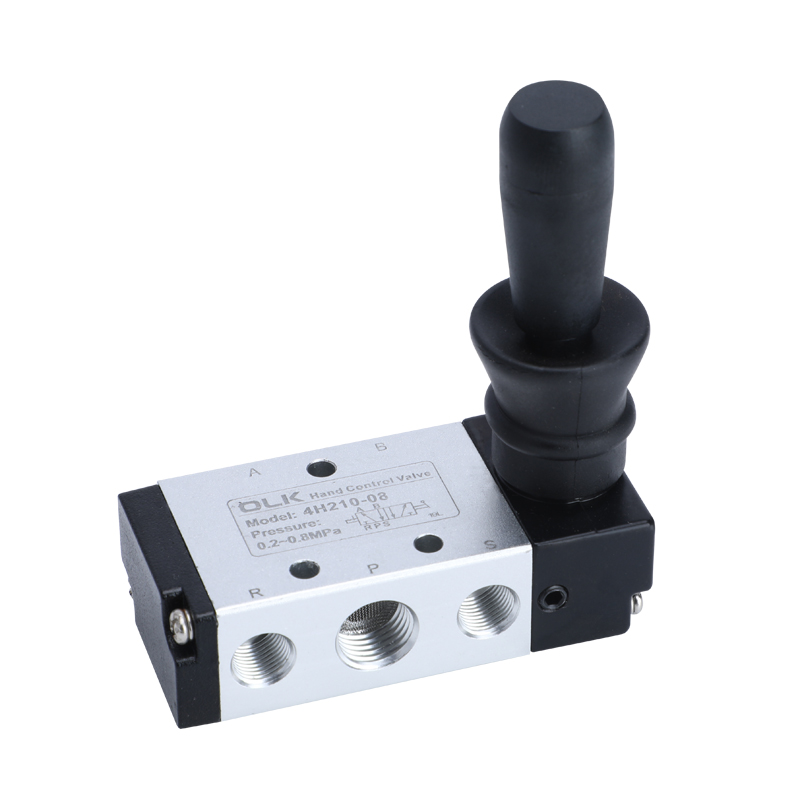

4H210-08 |
Intake=outlet=G1/4 |
2 position 5 way |
16.0(0.89) |
|
4H230C-08 |
Intake=outlet=G1/4 |
Three position five way |
12.0(0.67) |
|
4H230E-08 |
Intake=outlet=G1/4 |
Three position five way |
12.0(0.67) |
|
4H230P-08 |
Intake=outlet=G1/4 |
Three position five way |
12.0(0.67) |
|
4H310-08 |
Intake=outlet=G1/4 |
2 position 5 way |
25.0(1.39) |
|
4H330C-08 |
Intake=outlet=G1/4 |
Three position five way |
18.0(1.00) |
|
4H330E-08 |
Intake=outlet=G1/4 |
Three position five way |
18.0(1.00) |
|
4H330P-08 |
Intake=outlet=G1/4 |
Three position five way |
18.0(1.00) |
|
4H310-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
2 position 5 way |
30.0(1.67) |
|
4H330C-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
18.0(1.00) |
|
4H330E-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
18.0(1.00) |
|
4H330P-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
18.0(1.00) |
