VM130 VM131 Механички вентил 3 пат пренесена

Model:VM130 VM131

Како професионален VM130 VM131 Механички вентил 3веј пренесено, можете да бидете сигурни да купите SMC TypeVM130, VM131 Механички вентил од нашата фабрика и OLK ќе ви понуди најдобра услуга по продажба и навремена испорака.

Испрати барање

Опис на производот

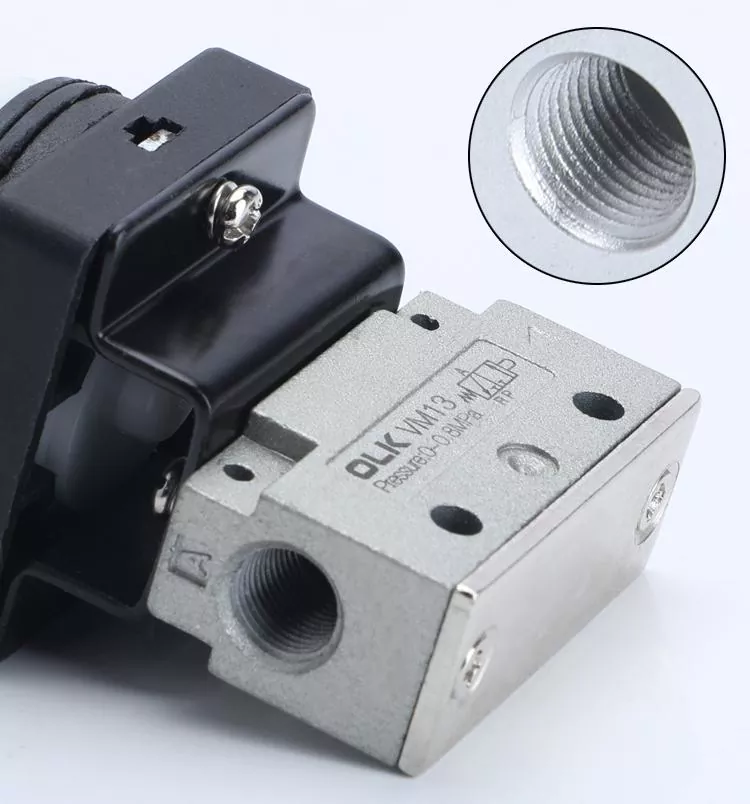

Ouleikai (OLK) VM130,VM131series SMC type 2 position 3 way mechanical valve.Precision thread G1/8 interface, good sealing performance, long service life.

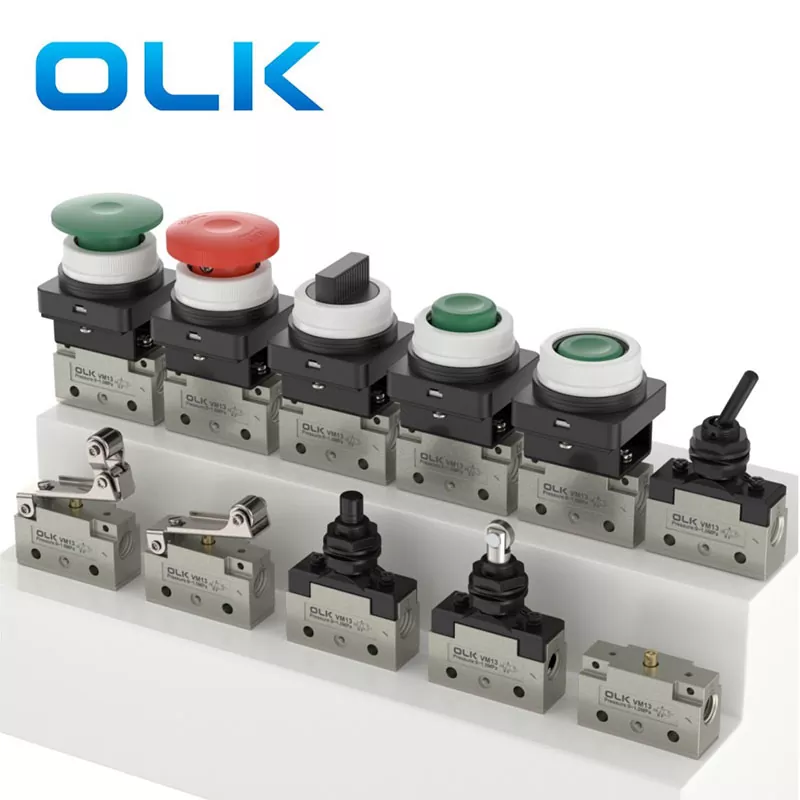

The button types VM130 VM131 Mechanical Valve 3way side ported are as follows:

-Straight plunger（VM130-01-05)

-Roller plunger(VM130-01-06

-Toggle lever (VM130-01-08)

- Basic (VM131-01-00)

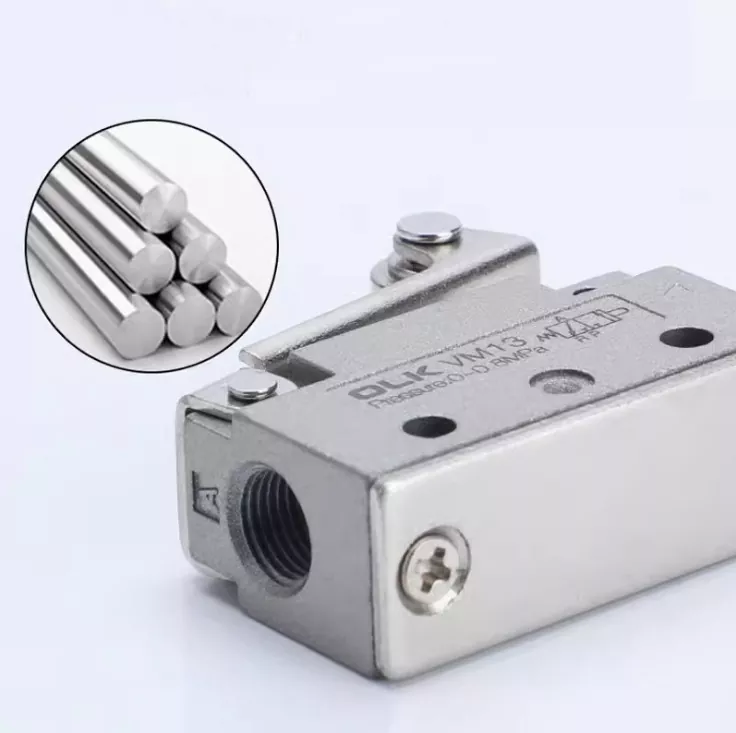

- Roller (VM131-01-01)

- Single-direction Roller (VM131-01-02)

- Mushroom Button (VM130-01-30)

- Extended Head Button (VM130-01-32)

- Flat Head Button (VM130-01-33)

- Emergency Stop Button (VM130-01-37)

- Knob (VM130-01-34)

The buttons VM130 VM131 Mechanical Valve 3way side ported are available in four colors: Red, Green, Black, and Yellow.

Ordering code
VM1	3	1	_	01	_	01	_	S	_
MODEL:VM1 series	Number of ports	Piping direction and the height of plunger		Port size:		Actuator type		Suffix for actuator		Suffix for indicator
	2:2port	0:side ported/long		01:PT1/8		00:Basic		S:Hard steel roller		Z:with miniature indicator
	3:3port	1:side ported /short				01:Roller lever		R:red push button
		2:bottom ported/long				02:One way roller lever		B:Black push button
		3:bottom ported/short				05:Straight plunger		G:Green push button
						06:Roller plunger		Y:Yellow push button
						07:Cross roller plunger
						08:Toggle lever
						30:Push button (Mushroom)
						32:Push button (Extended)
						33:Push button (Flush)
						34:Twist selector (2 position)
						37:Key selector （EMERGENCY STOP）

VM130,131 series mechanical button control valve 3 way General parameters

	VM100	VM200
working medium	Air/ inert gas	Air/ inert gas
Action	External Control Direct Action	External Control Direct Action
Port diameter	Side:G1/8 bottom:M5X0.8	PT1/4
number of positions	2 position3 way	2 position3 way
lubricating	unnecessary	unnecessary
Working pressure range MPa(psi)	-0.1∼1.0	-0.1∼1.0
Working temperature °C	-5∼60	-5∼60
Body material	aluminum alloy	aluminum alloy
Effective cross-sectional area（CV)	2.5 mm²（0.14）	19 mm²（1.0）
